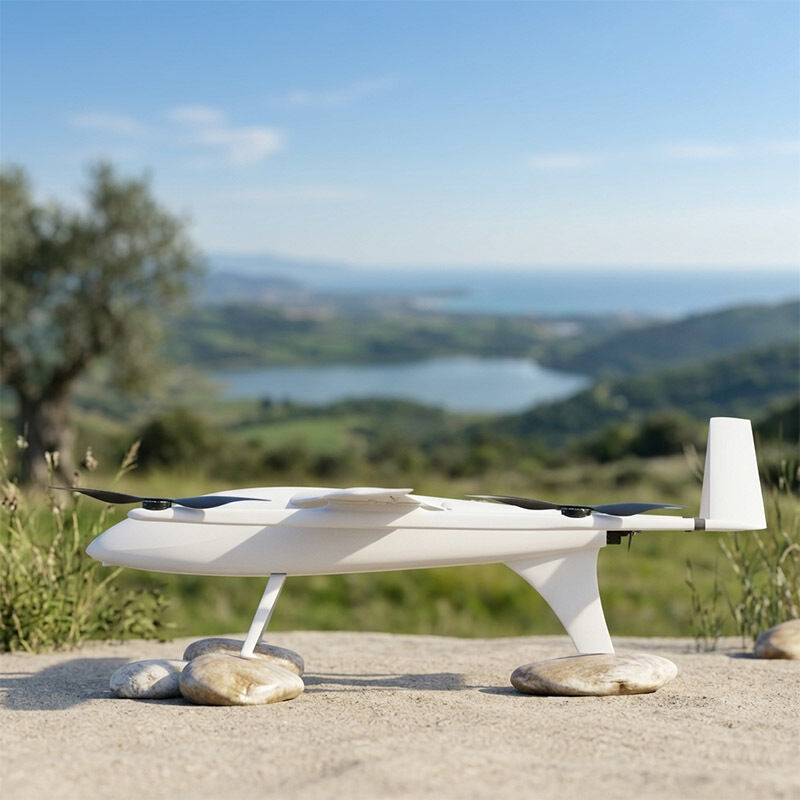

The ZAi-VT30 is a fully electric hybrid VTOL fixed-wing drone purpose-built for precision missions where efficiency, portability, and reliability are critical. Combining vertical take-off capability with aerodynamic cruise performance, it offers a streamlined solution for operators who require both flexibility and endurance in the field.
Engineered with a full carbon fiber composite airframe, the VT30 achieves an optimal strength-to-weight ratio, making it particularly effective for extended flight missions and payload-sensitive operations.
Core Strengths
Lightweight Yet Robust Structure
Constructed using aerospace-grade carbon fiber materials, the VT30 delivers:
- High structural integrity
- Reduced overall weight
- Enhanced durability in demanding environments
This enables consistent performance across long-duration missions without compromising payload capacity.
Efficient Electric Propulsion
The fully electric system ensures:
- Low operational noise
- Reduced maintenance requirements
- Environmentally friendly performance
It is especially suitable for urban, environmentally sensitive, or regulatory-restricted areas.
Optimized Aerodynamic Design
The three-segment high-aspect-ratio wing enhances lift efficiency, resulting in:
- Stable long-distance flight
- Improved energy utilization
- Consistent cruise performance even under variable conditions
Compact & Deployment-Ready
Designed with logistics in mind, the VT30 features a compact structure that supports:
- Quick assembly and deployment
- Efficient transportation
- Reduced storage footprint
Technical Specifications
| Parameter |
Specification |
| Drone Dimensions |
4000 * 1985 * 680 mm |
| Power System |
Electric |
| Maximum Take-Off Weight |
30 kg |
| Maximum Payload |
10 kg |
| Cruising Speed |
86 km/h |
| Maximum Speed |
130 km/h |
| Maximum Climb Speed |
4 m/s |
| Maximum Descent Speed |
5 m/s |
| Operational Altitude |
4500 m |
| Wind Resistance |
Level 6 |
| Operating Temperature |
-20°C to 45°C |
| Endurance |
360 min (5 kg payload) / 120 min (10 kg payload) |
| Range |
360 km |
| Flight Modes |
Manual / Fully Autonomous |
| Transport Case Size |
1840 * 720 * 600 mm |
Application Use Cases
Precision Inspection
The VT30 is well-suited for detailed inspection tasks where maneuverability and endurance are essential:
- Power line and substation inspection
- Pipeline and infrastructure monitoring
- Wind turbine and solar farm surveys
Surveying & Mapping
With stable flight characteristics and payload compatibility, it supports:
- High-resolution aerial mapping
- Topographic and geospatial data collection
- Land and resource management projects
Environmental Monitoring
Quiet electric propulsion makes it ideal for:
- Wildlife observation
- Forestry and conservation projects
- Air and environmental quality monitoring
Tactical & Security Operations
Its portability and fast deployment capability allow for:
- Rapid situational awareness
- Border and perimeter patrol
- Temporary communication relay missions
Payload & System Compatibility
The VT30 supports modular payload integration, allowing operators to configure the platform based on mission requirements. Compatible systems include:
- EO/IR gimbals
- Mapping cameras
- Lightweight LiDAR units
- Data transmission modules
Its flexible architecture ensures seamless adaptation across industries and operational scenarios.
Designed for Field Efficiency
From transport to deployment, the VT30 minimizes operational complexity. The compact packaging and modular structure allow teams to mobilize quickly, reducing downtime and increasing mission readiness.
This makes it particularly valuable for organizations that require rapid response capabilities without sacrificing performance.
Why ZAi-VT30?
- Electric-powered for low-noise, low-maintenance operations
- Balanced payload and endurance performance
- Compact and transport-friendly design
- High aerodynamic efficiency for long-range missions
- Adaptable platform for diverse professional applications
Tailored UAV Solutions
Every operational environment presents unique challenges. ZAi offers customization services to ensure the VT30 aligns precisely with your mission profile—from payload selection to system integration and flight optimization.
Start Your Project
If you are planning to deploy a reliable, efficient VTOL drone for inspection, mapping, or environmental monitoring, the ZAi-VT30 provides a practical and scalable solution.
Reach out to our team to discuss your requirements and explore how this platform can be configured for your next mission.
